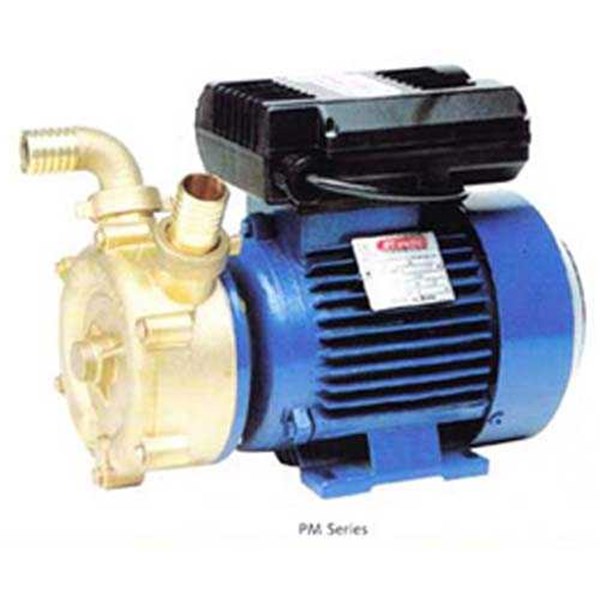

Detail POMPA AIR (WATER TRANSFER PUMP) SPERONI PM 20 / PM 200

SPERONI OIL TRANSFER PUMP PM 20 / PM 200 POMPA TRANSFER OLI, SOLAR JUICE, CUKA Features OPERATING ConDITIONS - Liquid temperature up to 35° C - Ambient temperature up to 40° C - Total suction lift up to 6 mt. - Continuous duty MOTOR - Two-Pole induction motor ( n = 2850 min-1) - Insulation Class F - Protection IP 44 MATERIALS - Pump body Bronze - Motor support Cast Iron - Impeller Bronze - Shaft with rotor Stainless steel - Double oil seal APPLICATION Bronze electropumps find their application in the transfer of water, wine, vinegar and juice. For the correct functioning of the pump, use clean water, or non-agressive liquids only without sand or other solid impurities The special selfpriming system allows Speifications Type : PM 20/ PM 200 Power : 0.37 kW ; Voltage : 230V/ 50Hz Daya hisap : 9 Meter Daya dorong : 10 Meter Capacity : 1.5 m3/ h ( 25 l/ m ) : 70 l/ min ( Total Head = 1) 50 l/ min ( Total Head = 3 ) 20 l/ min ( Total Head = 5)
