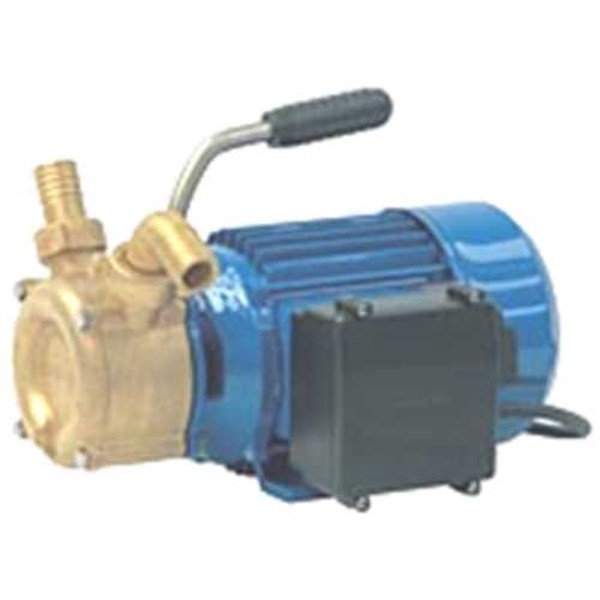

Detail POMPA AIR (WATER TRANSFER PUMP) SPERONI PM 25/ PM 250

SPERONI OIL TRANSFER PUMP PM 25/ PM 250 POMPA TRANSFER OLI, SOLAR JUICE, CUKA Features OPERATING ConDITIONS - Liquid temperature up to 35° C - Ambient temperature up to 40° C - Total suction lift up to 6 mt. - Continuous duty MOTOR - Two-Pole induction motor ( n = 2850 min-1) - Insulation Class F - Protection IP 44 MATERIALS - Pump body Bronze - Motor support Cast Iron - Impeller Bronze - Shaft with rotor Stainless steel - Double oil seal APPLICATION Bronze electropumps find their application in the transfer of water, wine, vinegar and juice. For the correct functioning of the pump, use clean water, or non-agressive liquids only, without sand or other solid impurities Speifications Type : PM 25/ PM 250 Watt : 0.75 kW; Voltage : 230V/ 50Hz Daya hisap : 9 Meter Daya dorong : 19 Meter Capacity : 3.3 m3/ h ( 55 l/ m) Kapasitas : 70 l/ min ( Total Head = 2) 50 l/ min ( Total Head = 5 ) 20 l/ min ( Total Head = 18)
